lc297. Serialize and Deserialize Binary Tree

2022-02-14 336 words 2 minutes

Contents

Serialization is the process of converting a data structure or object into a sequence of bits so that it can be stored in a file or memory buffer, or transmitted across a network connection link to be reconstructed later in the same or another computer environment.

Design an algorithm to serialize and deserialize a binary tree. There is no restriction on how your serialization/deserialization algorithm should work. You just need to ensure that a binary tree can be serialized to a string and this string can be deserialized to the original tree structure.

Clarification: The input/output format is the same as how LeetCode serializes a binary tree. You do not necessarily need to follow this format, so please be creative and come up with different approaches yourself.

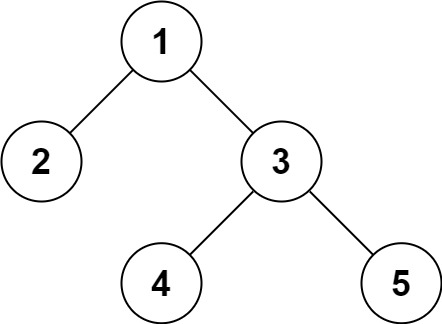

Example 1:

1
2


Input: root = [1,2,3,null,null,4,5]
Output: [1,2,3,null,null,4,5]

Example 2:

1
2


Input: root = []
Output: []

Constraints:

The number of nodes in the tree is in the range [0, 104].
-1000 <= Node.val <= 1000

解题思路

二叉树的序列化本质上是对其值进行编码，更重要的是对其结构进行编码。可以遍历树来完成上述任务。众所周知，我们一般有两个策略：广度优先搜索和深度优先搜索。

广度优先搜索可以按照层次的顺序从上到下遍历所有的节点深度优先搜索可以从一个根开始，一直延伸到某个叶，然后回到根，到达另一个分支。根据根节点、左节点和右节点之间的相对顺序，可以进一步将深度优先搜索策略区分为： 1. 先序遍历 2. 中序遍历 3. 后序遍历

如Example 1的树，采用先序遍历我们可以得到字符串: 1, 2, None, None, 3, 4, 5

None表示子节点不存在，因此该字符串就保留了树的结构。

该序列化方法的时间复杂度为O(N)，因为我们只会访问每个节点一次。空间复杂度也为O(N).

反序列化的过程我们先把字符串根据“,”拆分，然后从左往右遍历元素。

序列化函数和反序列化函数都可以用递归思想。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43


# Definition for a binary tree node.
# class TreeNode(object):
#     def __init__(self, x):
#         self.val = x
#         self.left = None
#         self.right = None

class Codec:

    def serialize(self, root):
        """Encodes a tree to a single string.

        :type root: TreeNode
        :rtype: str
        """
        if root==None:
            return '#,'
        left=self.serialize(root.left)
        right=self.serialize(root.right)
        return str(root.val)+','+left+right


    def deserialize(self, data):
        """Decodes your encoded data to tree.

        :type data: str
        :rtype: TreeNode
        """
        return self.buildTree(data.split(','))

    def buildTree(self,data):
        val=data.pop(0)
        if val=='#':
            return None
        node=TreeNode(val)
        node.left=self.buildTree(data)
        node.right=self.buildTree(data)
        return node

# Your Codec object will be instantiated and called as such:
# ser = Codec()
# deser = Codec()
# ans = deser.deserialize(ser.serialize(root))
