Contents

CKKS

What’s is CKKS

Plain Computation Encrypted Computation
bool, int (uint 64), modulo p BGV, BFV, TFHE
double (float) CKKS

https://cdn.jsdelivr.net/gh/JoshuaChou2018/oss@main/uPic/image-20220918162117066.Ku5Nj6.png

Approximate arithmetic

https://cdn.jsdelivr.net/gh/JoshuaChou2018/oss@main/uPic/image-20220918162537891.9Y2Dr7.png

For floating-point arithmetic, we keep the bits of significand to be the same.

For fixed-point arithmetic, we keep the scaling factor to be the same.

Algorithms in CKKS

https://cdn.jsdelivr.net/gh/JoshuaChou2018/oss@main/uPic/image-20220918162900736.SXIN4t.png

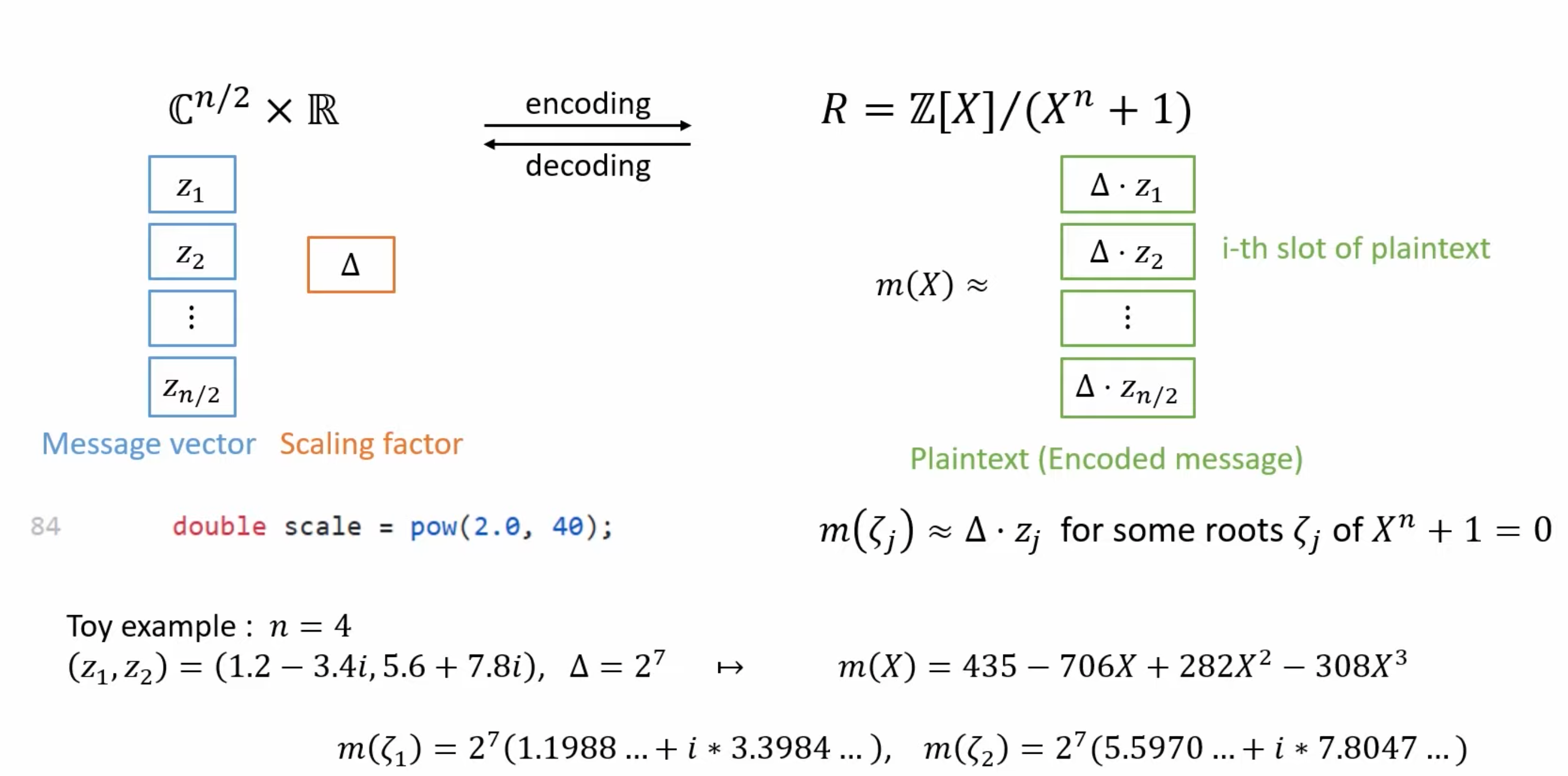

Encoding and decoding

https://cdn.jsdelivr.net/gh/JoshuaChou2018/oss@main/uPic/image-20220918163515634.RwOjkR.png

在编码过程中需要使用比较大的scaling factor,这样可以保证更大的精度。

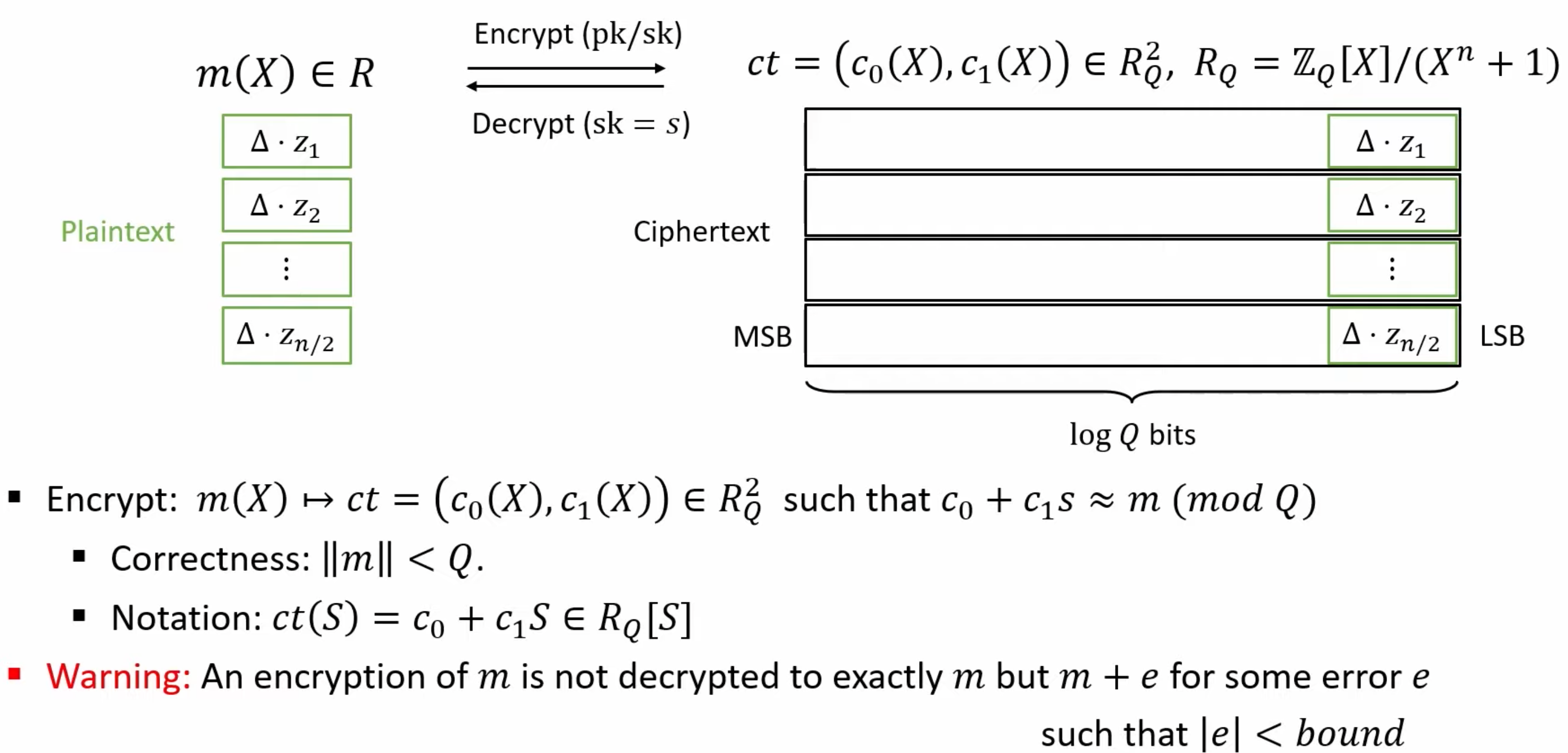

Encrypt and decrypt

https://cdn.jsdelivr.net/gh/JoshuaChou2018/oss@main/uPic/image-20220918164003975.asv6vQ.png

Ref

https://www.youtube.com/watch?v=iQlgeL64vfo
